1/2" DN40 Aluminium Pulse Solenoid Valve Dust Collector

Norgren 8296600.8171 Dust Collector 1 1/2" DN40 8296 Series Aluminium Pulse Solenoid Valve

Product Description

1. Product Name: 8296600.8171 Norgren Dust Collector 1 1/2" DN40 8296 Series Aluminium Pulse Solenoid Valve

2. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

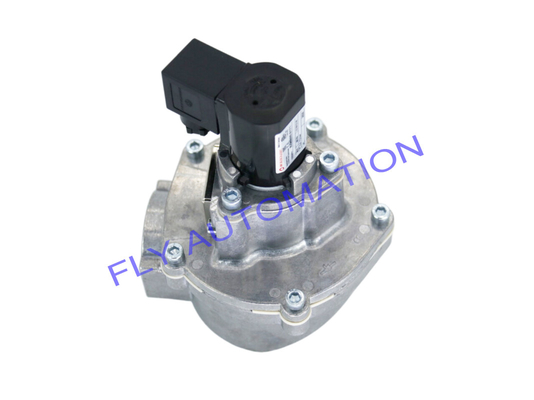

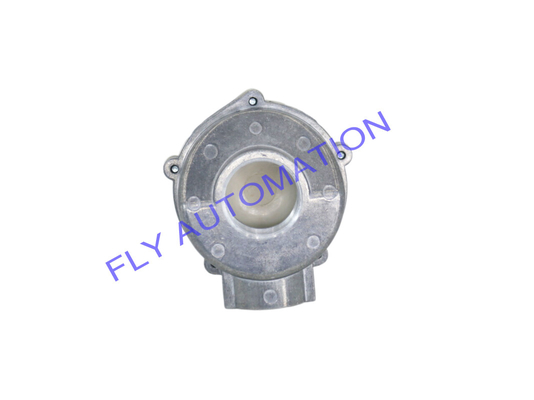

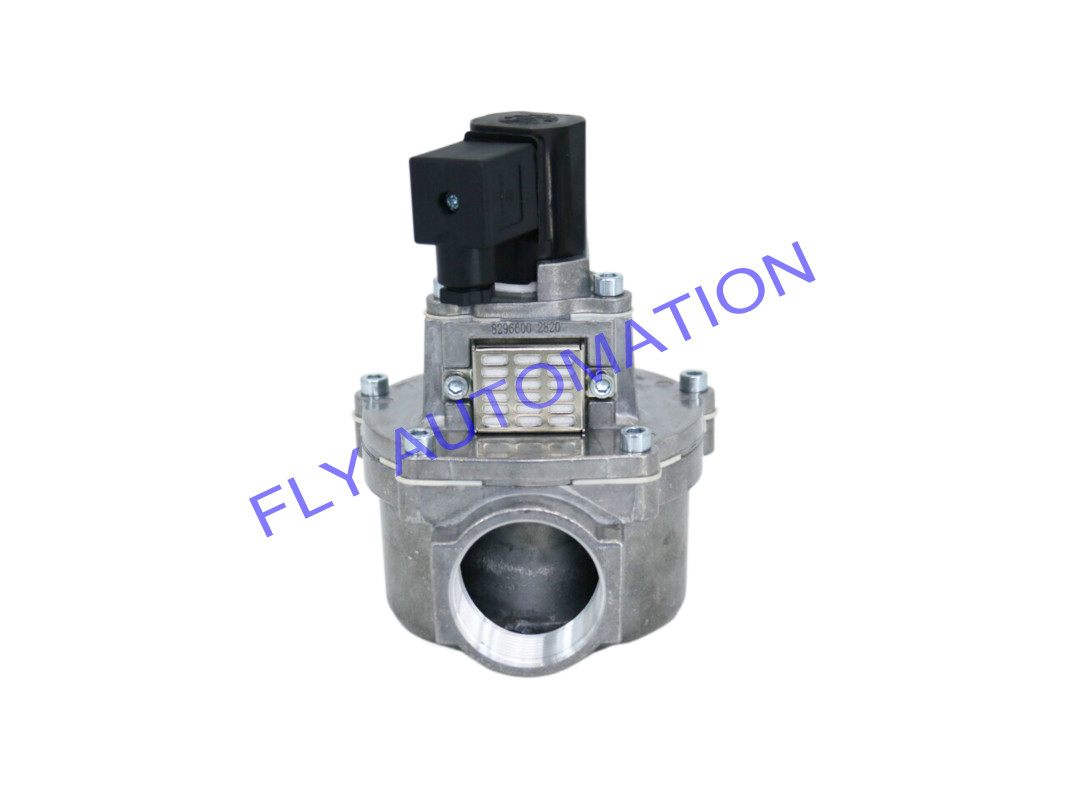

3. Product show

4. Ordering information

To order, quote model number from table overleaf, e. g. 8296600.8171 for a G 1 1/2" valve with standard solenoid.

5. Operation

Recommended on time range: 50-500ms

Recommended time between pulses: 1 minute or greater

6. Material

Body: Aluminium

Seat seal: TPE

Internal parts: TPU

7. Suitable for

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters..

8. In addition

If you have received a product which has a problem ,please contact us the fist time.

9. Description (standard valve)

Switching function: normally closed

Flow direction: determined

Coil gas temperature: –40 °C to max. +85 °C

Ambient temperature: –20 °C to max. +85 °C

Mounting position: optional, preferably solenoidvertical on top

10. Features

· High flow rate

· All internal components captiv
· Simple compact design
· Solenoid interchangeable without tool
· Integrated silencer
· One-piece diaphragm

11. Drawing
